Guardair® PowerQUAD™ Vacuum Kit with 1-1/2" Inlet, 55 Gallon Capacity

Sale price$3,279.00

Description

Meet the PowerQUAD™ 55-Gallon Vacuum w/ 1-1/2" Inlet – the pinnacle of pneumatic vacuum technology. Engineered for exceptional performance, PowerQUAD™ Vacuums are ideal for vacuuming up chips, dust, debris, liquids, or sludge in industrial and commercial applications. Powered by compressed air, with no rotating parts, no motors to spark or burnout, and no electric cords, PowerQUAD™ Vacuums generate superior vacuum suction while delivering substantial operating cost savings. Kit includes vacuum hose, air supply hose and accessories.

Features:
  • Energy Efficient and Powerful: Consume up to 70% less compressed air while delivering unparalleled vacuum suction and substantial operating cost savings.
  • Advanced Noise Reduction: Ultra-quiet operation at 88 dBA or less -- 10–15 dB quieter than traditional vacuums.
  • Intrinsically Safe: No electric motors, or risk of electrical sparks, no electric cords -- safe in both wet and dry locations.
  • Customizable Performance: Tailor performance with three color-coded, easy-to-change injector nozzle sets to customize the level of compressed air savings and vacuum suction.

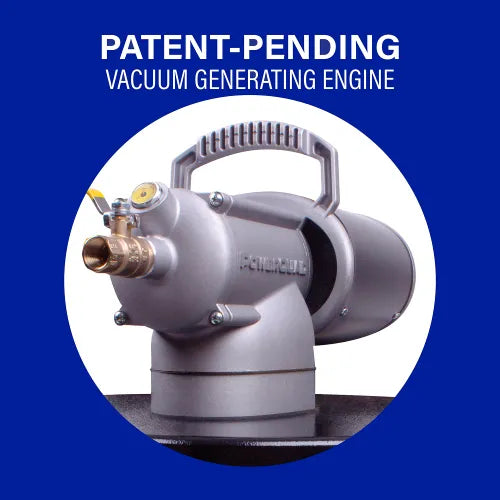

  • Proprietary Design: Rugged, diecast aluminum, vacuum generating engine features unique 2-stage, multi-venturi design engineered to deliver superior performance.
  • Versatile: Equipped with a liquid shutoff assembly -- suitable for both wet and dry wet applications.
  • Compatible: Backwards compatible with all existing Guardair® pneumatic vacuum components including drums, covers, attachments and accessories.
  • Includes: (1) PowerQUAD™ 55-Gallon Vacuum Generating Head w/ 1-1/2" Vacuum Inlet, (1) Air Supply Shut-Off Valve w/ 1/2" FNPT, (1) 20/30/55 Gal Wire Cage Coalescing Filter, (1) Heavy-Duty, 19-Gauge, 55-Gallon Steel Drum, (1) 1/2" x 12' Air Supply Hose w/ 1/2" MNPT Swivel connectors, (1) 1-1/2" x 10' Standard Duty Vacuum Hose, (1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool, (1) 24" Metal Crevice Tool, (1) Drum Dolly w/ (4), 3" Diameter Steel Swivel Casters

Weights & Dimensions

Length 28
Width 28 in
Height 48-1/2 in
Weight 91 lbs
Water Lift 126 - 251 in
Inlet Size 1/2 in
Hose Diameter 1-1/2 in
Hose Length 10 ft



Product Details

Filter Type Standard
Air Consumption 20 - 60 CFM
Filtration 10 microns @ minimum of 98% efficiency
Material Steel
Manufacturers Part Number PQ55C150
Brand Guardair Corporation
Type Wet/Dry Vacuum
CFM 20 - 60 CFM
Type of Power Pneumatic
Color Black
Style Multi Stage Pneumatic Vacuum Unit
Capacity 55 gal
Description 55 Gallon Vacuum Kit
Package Quantity 1
Vacuum Flow 92 - 129
Min Compressor Size 4 - 12 HP
Decibels 82 - 85



MPN #: PQ55C150 Model #: B3169139
